HD Rear Triangulated Four Link with Adjustable Bolt On Axle Air Ride Bracket Kit

Part# - HEXABBTTK4 SKU::334286
MagnifyHelix Suspension Brakes and Steering - HEXABBTTK4 - 1
Previous Image
Next Image

*picture may not represent actual product

Web Special Price

$474.89 USD

Regular Price: $555.62

MSRP: $617.36

Email Friend

Download:

Description of Product HEXABBTTK4

Includes a pair of adjustable rear 3 inch axle air bag brackets with hardware. Made of heavy duty 3/16 inch steel then black oil soaked with an anti-rust coating, these brackets are designed for performance. Mounts over or under your axle. Bolts on to frame and welds onto axle.

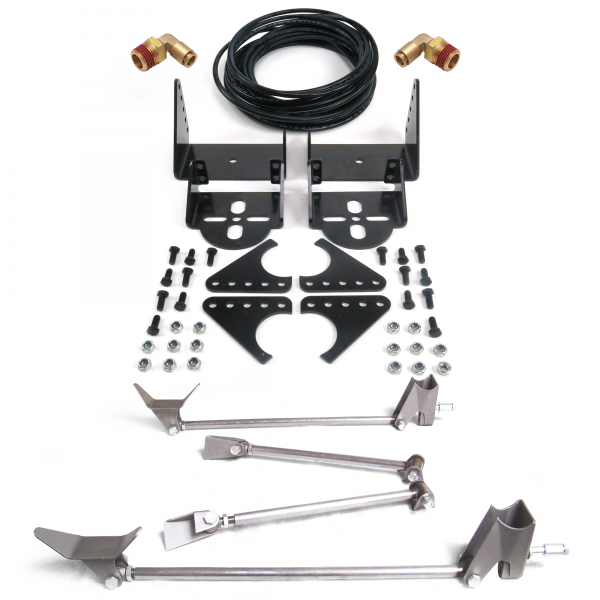

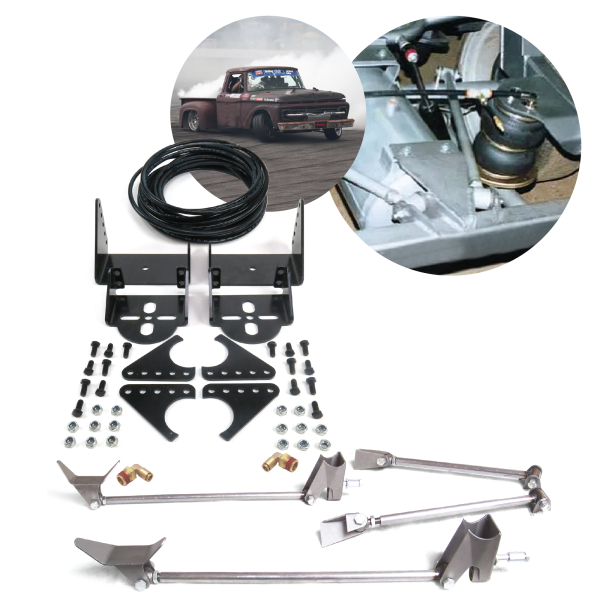

Includes 2 axle brackets, 2 upper bag brackets, 2 lower bag brackets, 16 grade 8 bolts & nuts, 50’ air line & 2 elbow fittings (This Kit Does NOT Include Bags). We do have kits with bags available in our other ads, or please call to add bags to ANY kit!



PLUS Helix Triangulated Full Size Universal Four Link Kit. Putting a lot of horsepower through your rear end? Helix's New Heavy Duty Universal Triangulated 4-Link Kit is stronger than the rest! With the same .156 wall tubing that is the standard in drag racing applications, Helix's full-sized 4-link kit will remain straight and perfectly aligned under even the most demanding applications. Helix's adjustable 4-link features extra long 28 inch main bars and 18 inch secondary bars to provide you with the maximum in suspension travel and adjustability. Brass sleeved bushings guarantee a lifetime of squeak-free operation. Completely TIG welded for maximum strength. All mounts are cut from 3/16” plate. Special infinitely adjustable CNC machined threaded rod ends are thicker than usual and thread over 2.5 inches into the 4-link tubes for both strength and adjustability. Fully plated mounting hardware included.



Stay ahead of the pack with Helix Suspension. For more information on Helix products please contact your local dealer, or go to http://www.helixsuspension.com.

Features

  • Material :: Steel
  • Finish :: Black Oil Soak
  • Anti Rust Coating :: Yes
  • Thickness :: 3/16”
  • Axle Bracket :: 2
  • Upper Bag Bracket :: 2
  • Lower Bag Bracket :: 2
  • Hardware :: 16 Bolt & Nuts Included
  • Hardware Grade :: Grade 8
  • Axle :: 3” Axles
  • Adjustable :: 3”
  • Mount :: Over or Under Axle
  • Included :: 50’ 3/8 air line
  • Included :: 2 elbow fittings
  • Feature :: Heavy Duty Triangulated Full Size Universal
  • Main Bar :: 28” (711mm) Long
  • Secondary Bar :: 18” (457mm) Long
  • Bar Wall Thickness :: 4.1mm
  • Heavy Duty Bushings :: YES
  • Coil Over Brackets Positions :: 3
  • Coil Over Brackets :: YES
  • Adjustable :: YES
  • Bar Thickness :: 25mm
  • Brackets Thickness :: 5mm
  • Brackets :: Included
  • Install Hardware :: YES
  • Number Of Bars :: 4
  • Bushing Included :: YES
  • Shock Hardware :: YES
  • Hardware :: YES
  • Axle :: 3” & 2 3/4”
  • Feature :: Free Tech Support
  • Feature :: Limited Lifetime Warranty
