$399.95 USD

Description of Product HEXSTB4

Vega Type Steering Boxes are a Hot Rodding Mainstay because they are compact, durable and work great for cross-steering setups on early Ford frames. Builders appreciate how they reduce bump-steer and their ease of installation because of their small footprint. They also offer improved handling compared to traditional systems. Over the years they have proven to be reliable, easy to adjust, and easy to install. And because they are readily available they are a great cost-effective upgrade.

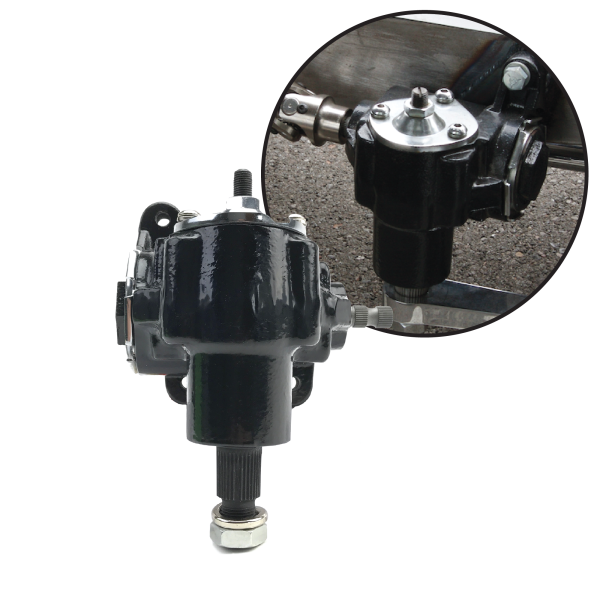

This Helix Vega RHD manual steering box features a durable cast iron case with precision machined internal components for years of reliable performance. It bolts to all standard Vega steering box brackets and accepts Vega-spline u-joints, pitman arms and accessories.



NOTES

Must be adjusted for optimal and preferred driver feel upon installation per included instructions.



Complete kit with mounting bracket, pitman arm, u-joints and 36 inch shaft is also available. SKU:315551



For more information please consult a Helix sales representative or visit our website.

Features

• ----- :: VEGA MANUAL STEERING BOX RHD
• Housing :: Cast Iron Case
• Finish :: Black
• Manual Steering :: Yes
• Right Hand Drive :: Yes RHD
• Cross-Steer :: Yes
• Shaft Diameter :: 15mm
• Input Shaft :: 5/8 in 36-Spline
• Gear Ratio :: 20:1
• Turns to Lock :: 6.25
• Saginaw Gear :: Yes
• Pitman Arm :: NOT Included
• Mounting Bracket :: NOT Included
• Sold Individually :: Yes
• Remanufactured :: No
• ----- :: OTHER
• Instructions :: Detailed Instructions
• Support :: USA Based Toll-Free
• Warranty :: Limited Lifetime Warranty
