$89.95 USD

Description of Product HEXAB1

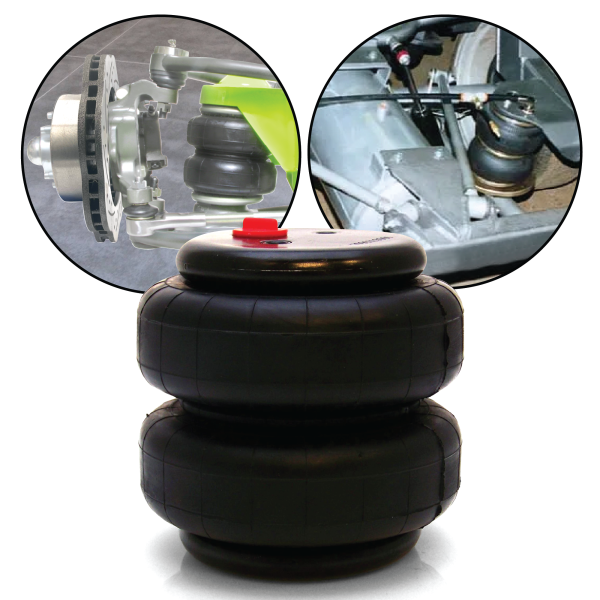

Helix 1/2" Single Port Air Bag 2500Lbs 600PSI under part number HEXAB1. Looking for a bag that can give you a smooth ride? Look no further! Helix bags feature a maximum restrained pressure of 602 psi, 6.2 inch usable stroke, with a load range of 2500 lbs, steel braided cord reinforced ribs and multi-layer nylon belt cords bonded into the rubber. The all steel top and bottom plates have rolled crimp connections for unmatched durability. Helix creates a high quality air bag that will give you the performance reliability you want with a smooth ride.



Stay ahead of the pack with Helix Suspension. For more information on Helix products please contact your local dealer,



Any application, fitment, installation, or specification details should be reviewed directly from the supplied source information and instructions. Review all supplied specifications and installation resources before beginning your project.



Key Features & Benefits:

The most important specifications for this item include or go to our website.. Feature 1/2 Inch Single Port Air Bag; Height 4.68"- 6.89"; Usable Stoke 6.2"; Load Rating 2500lbs; Max PSI 602psi. These details help explain how the component is configured and what makes it suitable for the application described in the product information. By focusing on these core specifications, builders and restorers can more easily evaluate compatibility, installation requirements, and overall project needs.

Features

• Feature :: 1/2 Inch Single Port Air Bag
• Height :: 4.68"- 6.89"
• Usable Stoke :: 6.2"
• Load Rating :: 2500lbs
• Max PSI :: 602psi
• Minimum :: Compressed 3"
• Max Extended :: 8.25"
• Diameter :: 5.25"
• Warranty :: Limited Lifetime Warranty
• Support :: Toll Free Tech Support
