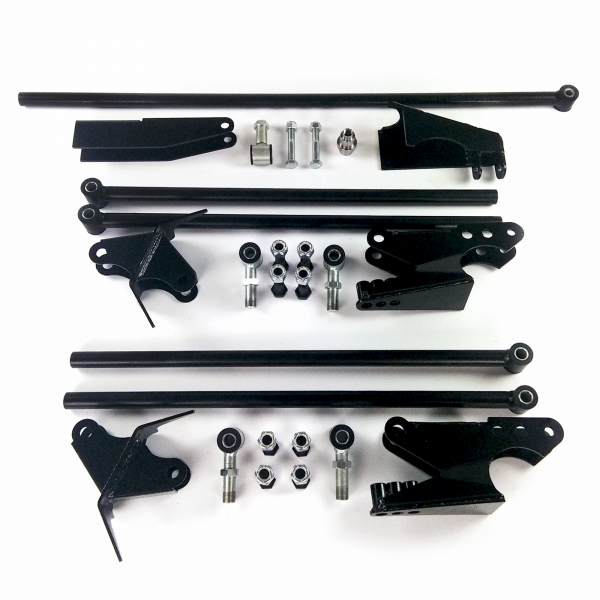

Heavy Duty Parallel Full Size Universal Four Link Kit with Shock Hardware

Part# - HEXTTK2 SKU::785796
MagnifyHelix Suspension Brakes and Steering - HEXTTK2 - 1
Previous Image
Next Image

*picture may not represent actual product

Web Special Price

$379.95 USD

Regular Price: $444.55

MSRP: $493.94

Email Friend


Description of Product HEXTTK2

Helix Parallel Full Size Universal Four Link Kit. Putting a lot of horsepower through your rear end? Helix's New Heavy Duty Universal Parallel 4-Link Kit is stronger than the rest! With the same .156 wall tubing that is the standard in drag racing applications, Helix's full-sized 4-link kit will remain straight and perfectly aligned under even the most demanding applications. Helix's adjustable 4-link features extra long 28 inch bars and provides you with the maximum in suspension travel and adjustability. Brass sleeved bushings guarantee a lifetime of squeak-free operation. Completely TIG welded for maximum strength. All mounts are cut from 3/16” plate. Special adjustable CNC machined threaded rod ends are thicker than usual and thread over 2.5 inches into the 4-link tubes for both strength and adjustability. Fully plated mounting hardware included.

Stay ahead of the pack with Helix Suspension. For more information on Helix products please contact your local dealer, or go to


  • Feature :: Heavy Duty Parallel Full Size Universal
  • Installation :: Weld In
  • Main Bars w/ Adjusters :: 28.5" (724mm) Long
  • Panhard Bar W/ Adjuster :: 40.75" (1035mm) Long Trimmable
  • Bar Wall Thickness :: 4.1mm
  • Heavy Duty Bushings :: YES
  • Adj. Coil Over Brackets Positions :: 3
  • Coil Over Brackets :: Lower
  • Adjustable :: YES
  • Bar O.D. :: 25 mm
  • Brackets Thickness :: 5mm
  • Brackets :: Included
  • Install Hardware :: YES
  • Number Of Bars :: 5 including Panhard
  • Bushing Included :: YES
  • Shock Hardware :: YES
  • Hardware :: YES
  • Axle :: 3" & 2 3/4"
  • Support :: Free Tech Support
  • Warranty :: Limited Lifetime Warranty
