$1,295.95 USD

Description of Product HEXTTK2ECE18

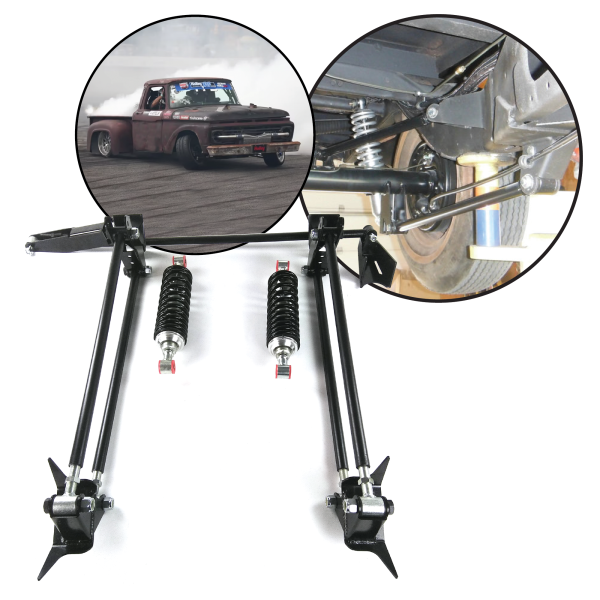

Upgrade your rear suspension with the Helix Universal Parallel 4-Link Kit, a complete weld-in system designed for hot rods, street rods, classic cars, restomods, and custom builds. The kit includes heavy-duty parallel 4-link bars, mounting brackets, weld-in upper shock crossmember, complete coilover shocks with progressive springs, and Grade 8 mounting hardware.



Built from .156" wall tubing with TIG-welded construction, the adjustable system features 28" main bars and 18" secondary bars for excellent suspension travel and adjustability. Choose from four coilover configurations to match your vehicle weight and suspension setup.



Coilover Shock Options:

• 273mm Shock / 180-200 lb Spring Rate - Up to 2,200 lbs GVW

• 273mm Shock / 200-240 lb Spring Rate - Up to 3,500 lbs GVW

• 337mm Shock / 180-230 lb Spring Rate - Up to 2,600 lbs GVW

• 337mm Shock / 250-300 lb Spring Rate - Up to 2,600 lbs GVW



Features & Specifications:

• Universal Parallel Rear 4-Link Suspension Kit

• Complete Coilover Shocks with Progressive Springs Included

• GVW Options: Up to 2,200, 2,600 or 3,500 lbs

• .156" Wall 4-Link Tubing

• 28" Main Bars / 18" Secondary Bars

• 3/16" Steel Mounting Plates

• TIG-Welded Construction

• Sleeved Bushings

• CNC-Machined Adjustable Threaded Rod Ends

• Plated Grade 8 Hardware

• Weld-In Upper Shock Crossmember

• Welding Required



PLEASE NOTE: This is not a bolt-on kit. Welding is required. GVW (Gross Vehicle Weight) refers to the total vehicle weight, including the vehicle, passengers, fuel, cargo, and other load. Select the appropriate coilover configuration for your vehicle weight and suspension setup.

Features

• Kit Type :: Parallel Four Link Kit with Coil Over Shocks
• Gross Vehicle Weight :: Up to 2,200 lbs
• Main Bar :: 28" (711mm) Long
• Secondary Bar :: 18" (457mm) Long
• Bar Wall Thickness :: 4.1mm
• Heavy Duty Bushings :: YES
• Coil Over Brackets Positions :: 3
• Coil Over Brackets :: YES
• Adjustable :: YES
• Bar Thickness :: 25 mm
• Brackets Thickness :: 5mm
• Brackets :: Included
• Install Hardware :: YES
• Number Of Bars :: 4
• Bushing Included :: YES
• Shock Hardware :: YES
• Hardware :: YES
• Axle :: 3" & 2 3/4"
• Upper Crossmember :: Included
• Shocks Included :: Yes
• Spring Rate :: 180-200 Progressive
• Style :: Coilover Shock
• Adjustable :: Yes
• Material :: Hardened Steel
• Color :: Silver
• Charged :: Nitrogen
• Length :: 273
• Upper Mounting :: Loop
• Lower Mount :: Loop
• Valving :: Performance Street
• Warranty :: Limited Lifetime
• Support :: Toll Free Tech Support
