$999.95 USD

Description of Product HEXTTK2ECE19

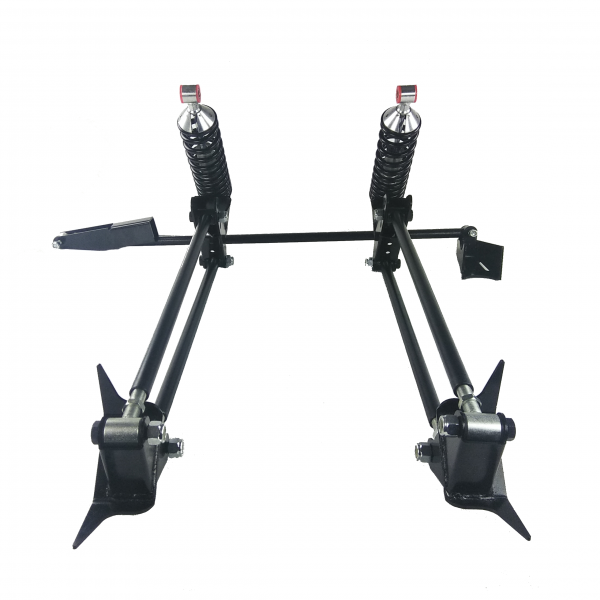

Installing a four link kit just got easy with this deluxe kit that includes the four link bars, brackets, upper shock mount, coilover shocks, and springs!ThisUniversal Parallel 4-Link Kit is stronger than the rest, with the same .156 wall tubing that is the standard in drag racing applications,



Adjustable 4-link features extra long 28 inch main bars and 18 inch secondary bars to provide you with the maximum in suspension travel and adjustability. Sleeved bushings guarantee an extended life and reduced wear during operation. Completely TIG welded for maximum strength.



All mounts are cut from 3/16” plate. Special infinitely adjustable CNC machined threaded rod ends are thicker than usual and thread over 2.5 inches into the 4-link tubes for both strength and adjustability. Fully plated Grade 8 mounting hardware included.



Parallel Four Link Kit with Coilover Shocks And Weld In Upper Crossmember Kits are available with different spring weights for heavier vehicles.



Stay ahead of the pack with Helix Suspension. For more information on Helix products please contact your local dealer, or go to http://www.helixsuspension.com.

Features

• Feature :: Heavy Duty Parallel Full Size Universal
• Main Bars w/ Adjusters :: 28.5" (724mm) Long
• Panhard Bar W/ Adjuster :: 40.75" (1035mm) Long Trimmable
• Bar Wall Thickness :: 4.1mm
• Heavy Duty Bushings :: YES
• Coil Over Brackets Positions :: 3
• Coil Over Brackets :: YES
• Adjustable :: YES
• Bar Thickness :: 25 mm
• Brackets Thickness :: 5mm
• Brackets :: Included
• Install Hardware :: YES
• Number Of Bars :: 5 Including Panhard
• Bushing Included :: YES
• Shock Hardware :: YES
• Hardware :: YES
• Axle :: 3" & 2 3/4"
• Support :: Free Tech Support
• Warranty :: Limited Lifetime Warranty
• Shocks Included :: Yes
• Spring Rate :: 200-240 progressive
• Upper Crossmember :: Included
• Style :: Coilover Shock
• Adjustable :: Yes
• Material :: Hardened Steel
• Color :: Silver
• Charged :: Nitrogen
• Length :: 273
• Upper Mounting :: Loop
• Lower Mount :: Loop
• Valving :: Performance Street
