Description of Product HEXTTK4AIRB

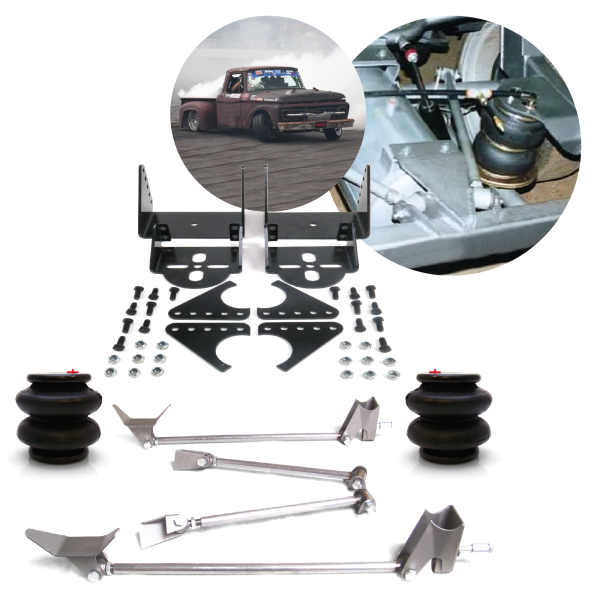

Helix Heavy Duty Triangulated Full Size Universal Four Link Kit with Shock Hardware, 2 1/2” Single Port Air Bags with a load rating of 2600 lbs and a Universal Rear Air Bag Bracket Kit.



Putting a lot of horsepower through your rear end? Helix's New Heavy Duty Universal Triangulated 4-Link Kit is stronger than the rest! With the same .156 wall tubing that is the standard in drag racing applications, Helix's full-sized 4-link kit will remain straight and perfectly aligned under even the most demanding applications. Helix's adjustable 4-link features extra long 28 inch main bars and 18 inch secondary bars to provide you with the maximum in suspension travel and adjustability. Sleeved bushings guarantee an extended life and reduced wear during operation. Completely TIG welded for maximum strength. All mounts are cut from 3/16” plate. Special infinitely adjustable CNC machined threaded rod ends are thicker than usual and thread over 2.5 inches into the 4-link tubes for both strength and adjustability. Fully plated mounting hardware included.



Helix bags feature a maximum restrained pressure of 602 psi, 8.51 inch usable stroke, with a load range of 2600 lbs, steel braided cord reinforced ribs and multi-layer nylon belt cords bonded into the rubber. The all steel top and bottom plates have rolled crimp connections for unmatched durability.



This kit comes with with a pair of adjustable rear 3 inch axle air bag brackets with hardware. Made of heavy duty 3/16 inch steel then black oil soaked with an anti-rust coating, these brackets are designed for performance. Mounts over or under your axle. Bolts on to frame and welds onto axle.



Includes 2 axle brackets, 2 upper bag brackets, 2 lower bag brackets & 16 grade 8 bolts & nuts.



Stay ahead of the pack with Helix Suspension. For more information on Helix products please contact your local dealer, or go to our website.

Features

• Includes :: Triangulated Four Link Kit with 2 Air Bags & Bracket Kit
• Heavy Duty :: Yes
• Four Link Main Bar :: 28" (711mm) Long
• Four Link Secondary Bar :: 18" (457mm) Long
• Four Link Bar Wall Thickness :: 4.1mm
• Four Link Heavy Duty Bushings :: YES
• Four Link Coil Over Bracket Positions :: 3
• Four Link Coil Over Brackets :: YES
• Four Link Adjustable :: YES
• Four Link Bar Thickness :: 25 mm
• Four Link Brackets Thickness :: 5mm
• Four Link Brackets :: Included
• Install Hardware :: YES
• Number Of Bars :: 4
• Four Link Bushing Included :: YES
• Four Link Shock Hardware :: YES
• Four Link Hardware :: YES
• Four Link Axle :: 3" & 2 3/4"
• --- :: ---
• Includes :: 2 1/2” Single Port Air Bags
• Air Bag Height :: 5.6" - 7.5"
• Air Bag Usable Stoke :: 8.51"
• Air Bag Load Rating :: 2600 lbs
• Air Bag Max PSI :: 602 psi
• Air Bag Minimum Compressed :: 2.8"
• Air Bag Max Extended :: 10.5"
• Air Bag Diameter :: 7.25"
• --- :: ---
• Includes :: Universal Rear Air Bag Bolt On Bracket Kit
• --- :: ---
