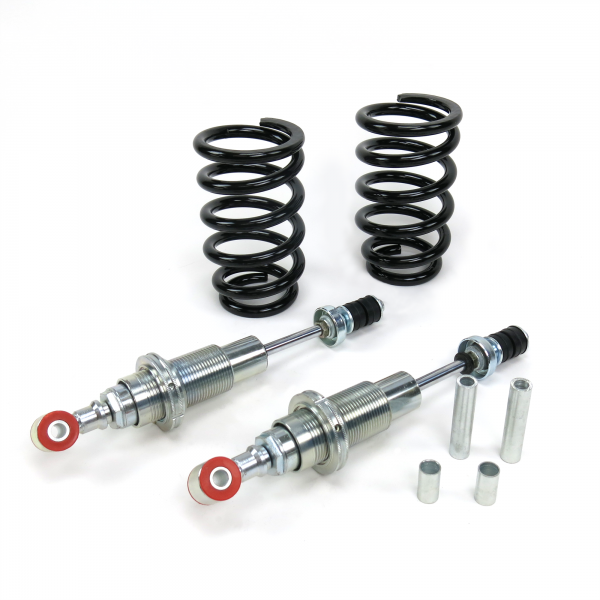

Mustang II Front Coilover Race Shock Set w/ 450 Lb Tapered Springs - Adjustable

Part# - HEXSHX4 SKU::262287
MagnifyHelix Suspension Brakes and Steering - HEXSHX4 - 1
Previous Image
Next Image

*picture may not represent actual product

Web Special Price

$499.95 USD

Regular Price: $584.95

MSRP: $649.94

Download:

Description of Product HEXSHX4

The Helix Shock Series Puts You In Control Of Your Suspension. Our Polished Hardened Steel Bodied Shocks Offer Ultimate Performance, and Look Great Too!



These shocks are stronger, and smoother than comparable shocks. Our shock shafts with hard anodized steel bodies deliver extra strength, while PTFE pistons, silicone bladders and titanium nitride coated shafts combine for smoother suspension movement and extra traction on bumpy surfaces.FITMENTMustang II IFS



INCLUDED:

Coilover Shock Body 273 mm (2)

Heavy-Duty Billet Aluminum Threaded Spring Adapter Perch (2)

Coilover Spring Cap (2)

Spike Stem Adapter (2)

Loop Shock Adapter w/ Polyurethane Bushings (2)

Extended Loop Shock Adapter (2)

Tapered Coilover Spring Set - 8” - 450lb (pair)



Our nitrogen gas charged shocks are engineered for long life and superior performance! This shock body is rebuildable! When you need to replace or upgrade you only need to change the necessary component.



All of our performance shocks feature an internal 10 stage sport valving system with reserve tube that allows for better fluid transfer flow and overall performance.



COILOVER SHOCK BODY SPECIFICATIONS:

Length :: 273 mm

Travel :: 3” (76.2mm)

Extended :: 12.4” (314.96mm)

Compressed :: 9.3” (236.22mm)

Thread End :: M12 x 1.25”



FEATURES:

• Hardened Steel Construction

• Modular Design System

• Nitrogen Gas Charged

• Sport Valving

• 10 Stage Valve System

• Reserve Tube (Enhanced Fluid Transfer)

• Engineered for Long life and Superior Performance

• Fully Upgradable

• Fully Adjustable



Update your OEM suspension with an easy to install bolt-in replacement and enjoy the ride.



From the road to the track, Helix has got your back!



All Helix parts are offered with Detailed Instructions and a Limited Lifetime Warranty.

Features

  • ---------- :: MUSTANG II COILOVER SET W/ TAPERED SPRINGS
  • ---------- :: 273 SHOCK BODY
  • Length :: 273 mm
  • Travel :: 3” (76.2 mm)
  • Extended :: 12.4” (314.96 mm)
  • Compressed :: 9.3” (236.22 mm)
  • Thread Pitch :: M12 x 1.25”
  • ---------- :: CONSTRUCTION
  • Body :: Hardened Steel
  • Style :: Modular Design System
  • Finish :: Polished
  • Nitrogen Gas Charged :: Yes
  • Sport Valving :: Yes
  • 10 Stage Valve System :: Yes
  • Reserve Tube :: Yes (Enhanced Fluid Transfer)
  • Superior Performance :: Yes
  • Engineered For Long Life :: Yes
  • Rebuildable :: Yes
  • Fully Upgradable :: Yes
  • ---------- :: FRONT TAPERED COILOVER SPRINGS
  • Rating :: 450 lbs
  • Height :: 8” (203.2 mm)
  • Upper O.D. :: 4 3/4” (120.65 mm)
  • Lower O.D :: 3 3/8” (85.725 mm)
  • Finish :: Black
  • Upper Style :: Flat
  • Lower Style :: Flat
  • ---------- :: LOOP SHOCK ADAPTER
  • Sleeve Adapters :: 1/2" & 5/8"
  • Thread Pitch :: M12 x 1.25"
  • Overall Length :: 3" (76.2 mm)
  • Center to End :: 1.5” (38.1mm)
  • ---------- :: EXTENDED LOOP ADAPTER
  • Installation :: Slips Into Closed Loop
  • Overall Length :: 4 1/4” (107.95mm)
  • Center to End :: 1.5” (38.1mm)
  • O.D. :: .5” (12.7 mm)
  • ---------- :: Spike Stem Adapter
  • Thread Pitch :: M12 x 1.25"
  • Overall Length :: 2” (50.8 mm)
  • Center to End :: 1.5” (38.1 mm)
  • ---------- :: OTHER
  • Instructions :: Detailed Instructions
  • Warranty :: Limited Lifetime Warranty
