$89.95 USD

Description of Product HEXBRK003

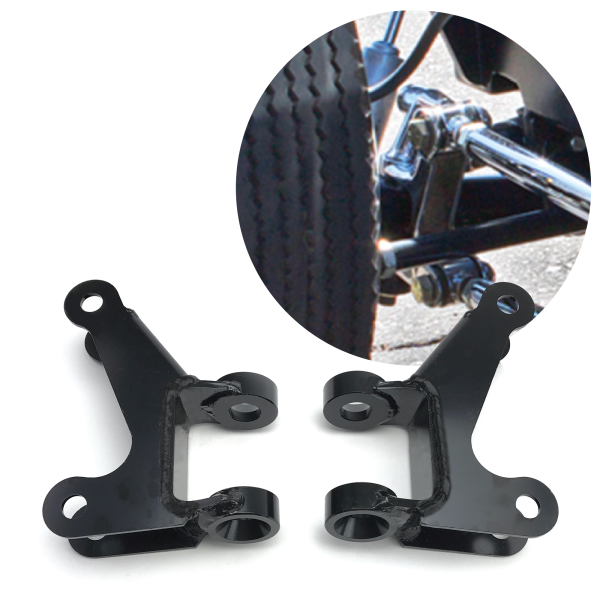

Helix Batwing Brackets Are Built for Early Ford Solid-Axle Front Ends Running a 4-Bar Setup. Designed to fit 1928–1948 Fords, they work with a 2" spring perch (with spacer) or a 2-1/4" perch boss when using a 4-bar suspension. The perch bosses are offset in the C-plate so the side brackets sit dead vertical, even when the axle boss has a slight anglekeeping your bars straight, parallel, and working like they should.



These Helix 4-Bar batwings are precision-engineered and fully welded at the factory. This is not a weld-it-yourself kit. Every bracket is built for consistency, so your Panhard bar lines up correctly with no bind or twist and bolts in clean every time. The result is a tight, dependable front suspension you can trust at highway speed or hard acceleration.



Finished in Helix’s durable Vampire Bat Black coating for rust and corrosion resistance, these batwings are made to handle real-world abusenot just look good on the shop floor. If you want parts that fit right, install clean, and hold up mile after mile, Helix delivers.



Stay ahead of the pack with Helix Suspension. For more information, contact your local dealer or visit the Helix Suspension website.

Features

• ----- :: FORD 4-LINK BATWING BRACKETS
• Fitment :: Early Ford
• Application :: Four Bar / Hairpin System
• Quantity :: Pair L&R
• Finish :: Dull Black Painted
• Style :: Vintage Design
• ----- :: DIMENSIONS
• Overall Height :: 6in (15.24cm)
• Boss Inside Diameter :: .70in (17.78mm)
• Bracket Hole Diameter :: 1/2in (12.7mm)
• 4-Bar Mount Center to Center :: 4.75in (120mm)
• 4-Bar Mount Eye Diameter :: 1/2in (12.7mm)
• Perch Boss Height :: 2.25in (5.715cm)
• Perch Eye Diameter :: 5/8in (17.60mm)
• Compatible 2in Spring Height :: Yes - with Spacer
• ----- :: OTHER
• Technical Support :: USA Based
• Warranty :: Limited Lifetime Warranty
