$599.95 USD

Description of Product HEXTTK2

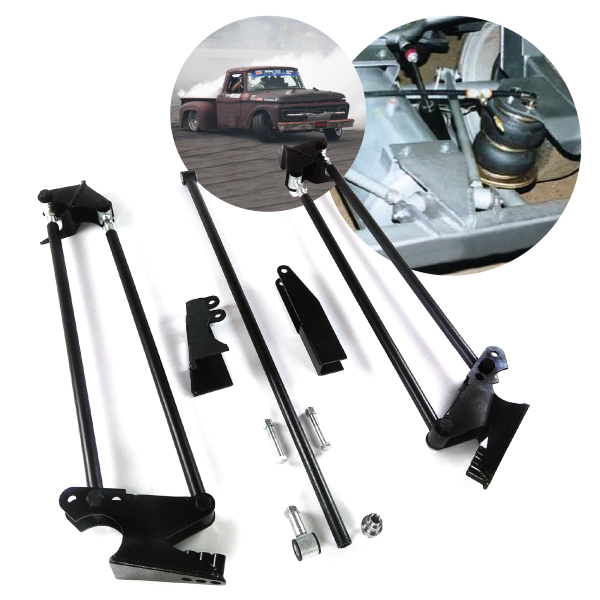

Full Size Street Track Performance Universal Parallel 4 Link Rear Suspension Kit



Putting a lot of horsepower through your rear end? Helix's New Heavy Duty Universal Parallel 4-Link Kit is stronger than the rest!



Can handle 450-500 HP out of the box. Run a scalloped gusset on the bars and go use with 1000 HP applications with upgraded bushings.



With the same .156 wall tubing that is the standard in drag racing applications, Helix's full-sized 4-link kit will remain straight and perfectly aligned under even the most demanding applications. Helix's adjustable 4-link features extra long 28 inch bars and provides you with the maximum in suspension travel and adjustability. Sleeved bushings guarantee an extended life and reduced wear during operation. Completely TIG welded for maximum strength. All mounts are cut from 3/16” plate. Special adjustable CNC machined threaded rod ends are thicker than usual and thread over 2.5 inches into the 4-link tubes for both strength and adjustability. Fully plated mounting hardware included.



Designed for inside Frame Rails but can been used outside with modifications with the Panhard bar needing to be inside.



Stay ahead of the pack with Helix Suspension. For more information on Helix products please contact your local dealer, or go to our website.



***PLEASE NOTE



This is NOT a bolt-on kit. Welding is required. Coilover shocks are NOT included, but we have a variety of options. Give our suspension hotline a call to help you pick the right shocks to match your setup and driving style.

Features

• Kit Type :: Heavy Duty Parallel Full Size Universal 4 Link Kit
• Installation :: Weld In
• Main Bars w/ Adjusters :: 28.5" (724mm) Long
• Panhard Bar W/ Adjuster :: 40.75" (1035mm) Long Trimmable
• Bar Wall Thickness :: 4.1mm
• Heavy Duty Bushings :: YES
• Adj. Coil Over Brackets Positions :: 3
• Coil Over Brackets :: Lower
• Adjustable :: YES
• Bar O.D. :: 25 mm
• Brackets Thickness :: 5mm
• Brackets :: Included
• Install Hardware :: YES
• Number Of Bars :: 5 including Panhard
• Bushing Included :: YES
• Shock Hardware :: YES
• Hardware :: YES
• Axle :: 3" & 2 3/4"
• Support :: Free Tech Support
• Warranty :: Limited Lifetime Warranty
