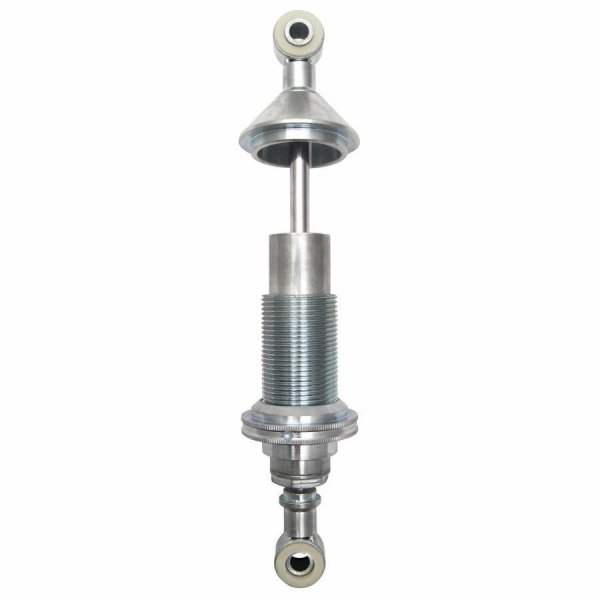

Helix Adjustable Heavy-Duty Coilover 273mm Length Shock System- 3” Travel Billet

Part# - HEXSHX SKU::19047
MagnifyHelix Suspension Brakes and Steering - HEXSHX - 1
Previous Image
Next Image

*picture may not represent actual product

Web Special Price

$199.95 USD

Regular Price: $233.95

MSRP: $259.94

Download:

Description of Product HEXSHX

Helix's Advanced Adjustable Coil-Over Shock System Was Built For Performance. This Aluminum Bodied Shock Uses State-of-the-Art Technology to Ensure The Smoothest Ride With The Best Cornering!



FEATURES

- Heavy-Duty Shock Body (273mm Length)

- 3” of Travel (76.2mm)

- Billet Aluminum Threaded Shock Adapter w/ Spring Perch

- Billet Aluminum Spring Cap

- Loop Shock Adapters (2 Included)

- Polyurethane Bushings



Fully adjustable coilover shocks allow you to fine tune your hotrod’s spring tension and ride height for better performance and handling.



Kit includes one modular 273mm length aluminum shock body with 3 inches of travel, a threaded shock adapter/perch, a spring cap and 2 loop shock adapters with sleeves.



THIS KIT DOES NOT INCLUDE A COIL SPRING. Choose the spring you need for your specific application from the selection of Helix Springs.



Sold as each.



All Helix Parts Come With USA Technical Support and a Limited Lifetime Warranty. We also offer Detailed Instructions.





Features

  • ---------- :: Modular Shock w/ Adapter/Perch/Spring Cap & Loop Adapters
  • Adjustable :: Yes
  • Material :: Aluminum
  • Smooth Ride :: Yes
  • Excellent Cornering :: Yes
  • Shock Length :: 273mm
  • Shock Travel :: 3 Inches (77mm)
  • Coil, Spring :: NOT INCLUDED
  • Sold As :: Each
  • ---------- :: Threaded Shock Adapter w/Perch
  • Construction :: Billet Aluminum
  • Overall Height :: 4 Inches (101.6mm)
  • Sleeve Diameter :: 1.9685 Inches (50mm)
  • Spanner Nut Width :: 3 Inches (76.2mm)
  • Set Screw :: m 4x8 w/5/64 Inch Hex
  • ---------- :: Loop Shock Adapter
  • Sleeve Adapters :: 1/2" & 5/8"
  • Female Threaded End :: M12 x 1.25"
  • Overall Length :: 2"
  • Center to End :: 1.5"
  • ---------- :: Other
  • Instructions :: Detailed Instructions
  • Warranty :: Limited Lifetime Warranty
